Descripcion:
La serie ASUS Prime esta disenada para aprovechar todo el rendimiento potencial de los procesadores AMD Ryzen de 3.o Gen. Equipadas con un potente diseno de alimentacion- soluciones de refrigeracion completas y opciones de ajuste inteligentes- las placas base de la serie Prime A520 incluyen ajustes de rendimiento software y firmware muy intuitivos.
Especificaciones:
Marca: Asus

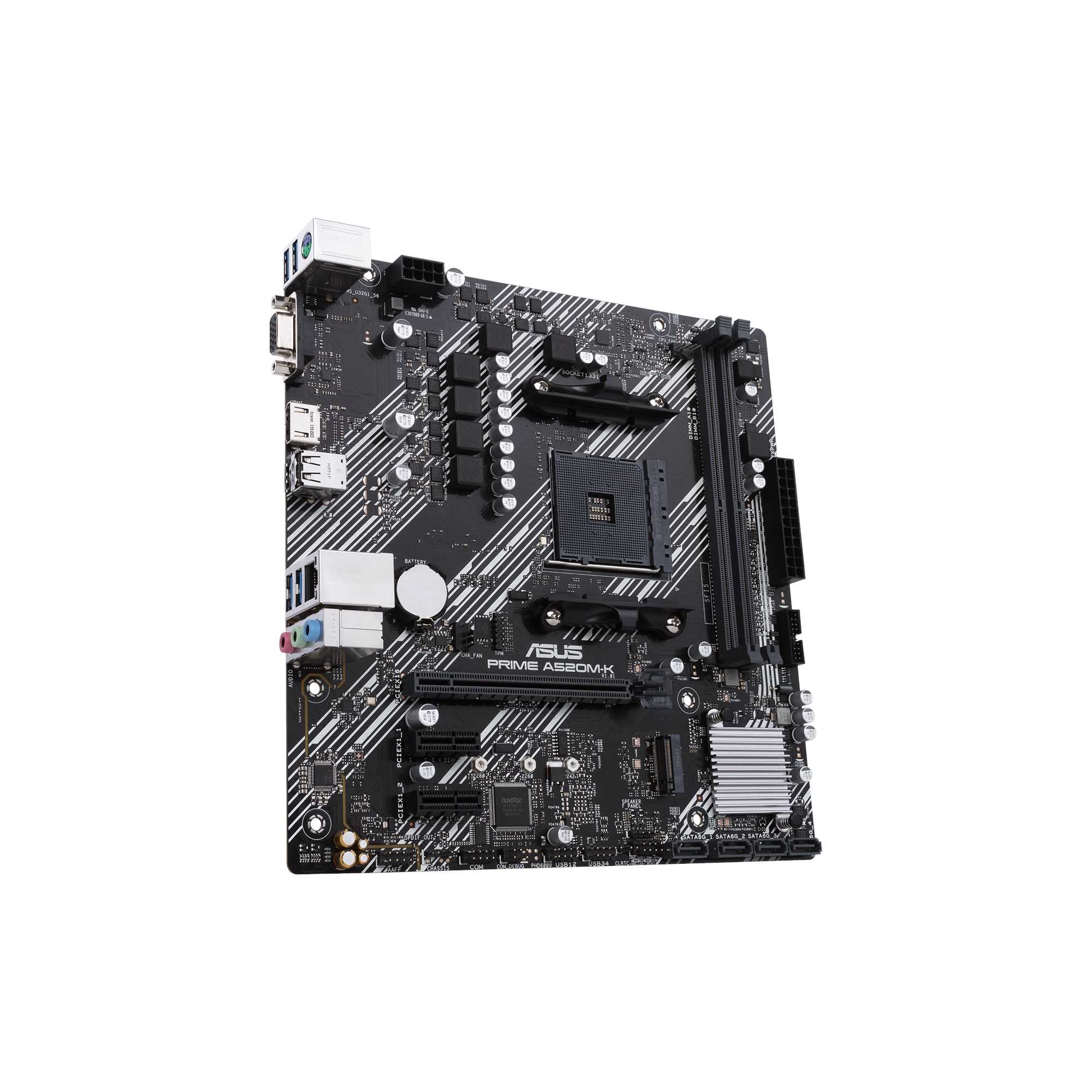

Modelo: PRIME A520M-K
Codigo del fabricante: 90MB1500-M0EAY0
Codigo universal del producto: 4718017826921
CPU: Socket AM4. Tenga en cuenta que cuando se trata de APUs (Ryzen 3000/4000 serie G)- solo los procesadores PRO (por ejemplo- Ryzen 3 PRO 3200G) soportaran la memoria ECC. Procesadores AMD Ryzen 5000 Series - Soportado. Procesadores AMD Ryzen 4000 G-Series - Soporte solo con PRO. Procesadores AMD Ryzen 3000 Serie - Soportado
CHIPSET: AMD A520
MEMORIA: 2 x DIMM- Max. 64GB- DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory. -Dual Channel Memory Architecture. -ECC Memory (ECC mode) support varies by CPU.
GRAFICOS: 1 x D-Sub. -1 x HDMI 2.1(4K@60HZ)
Slots de Expansion: -3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors. -1 x PCIe 3.0 x16 (x16 mode). -AMD A520 Chipset. -2 x PCIe 3.0 x1.
ALMACENAMIENTO: -Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports. -3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors: -1 x M.2 Socket 3- with M Key- Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support. -AMD A520 Chipset : -4 x SATA 6Gb/s port(s)Support Raid 0- 1- 10
RED DE DATOS INALAMBRICA: No aplica
BLUETOOTH: No aplica
AUDIO: Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC * - Supports : Jack-detection- Multi-streaming- Front Panel Jack-retasking- up to 24-Bit/192kHz playback. Audio Feature: - Audio Shielding. - Dedicated audio PCB layers
LAN: -Realtek RTL8111H 1Gb Ethernet. -ASUS LANGuard.
PUERTOS USB: -Rear USB Port ( Total 6 ). -4 x USB 3.2 Gen 1 port(s)(4 x Type-A).-2 x USB 2.0 port(s)(2 x Type-A). -Front USB Port ( Total 6 ). -2 x USB 3.2 Gen 1 port(s)(2 x Type-A). -4 x USB 2.0 port(s)(4 x Type-A).
PUERTOS I/O TRASEROS -1 x PS/2 keyboard/mouse combo port(s). -1 x D-Sub. -1 x HDMI. -1 x LAN (RJ45) port(s). -4 x USB 3.2 Gen 1 (blue) Type-A. -2 x USB 2.0. -3 x Audio jack(s).
INTERNAL I/O: -1 x CPU Fan connector(s). -1 x Chassis Fan connector(s). -1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s).-2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s). -1 x M.2 Socket 3 with M key- type 2242/2260/2280 storage devices support (SATA | PCIE 3.0 x 4 mode). -1 x SPI TPM header. -4 x SATA 6Gb/s connector(s). -1 x S/PDIF out header(s). -1 x 24-pin EATX Power connector(s). -1 x 8-pin EATX 12V Power connectors. -1 x Front panel audio connector(s) (AAFP). -1 x Clear CMOS jumper(s). -1 x System panel connector. -1 x COM port header. -1 x Speaker connector.
BIOS: 256 Mb Flash ROM- UEFI AMI BIOS
FACTOR DE FORMA: mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
