Tarjeta madre de bajo consumo y sin ventilador para el procesador Intel Celeronr SoC J4005- con 2 x DDR4 2400/2133 MHz- 5X Protection II y compatibilidad con HDMI/D-Sub/LVDS.
Calidad probada: 5X Protection. Mas de 1000 dispositivos compatibles. Mas de 8000 horas de validacion.
AI Suite 3: Acceso integral a funciones innovadoras de ASUS.
Nuevo BIOS UEFI y modo EZ: Mas amigable- mas facil e intuitivo con informacion util agregada.

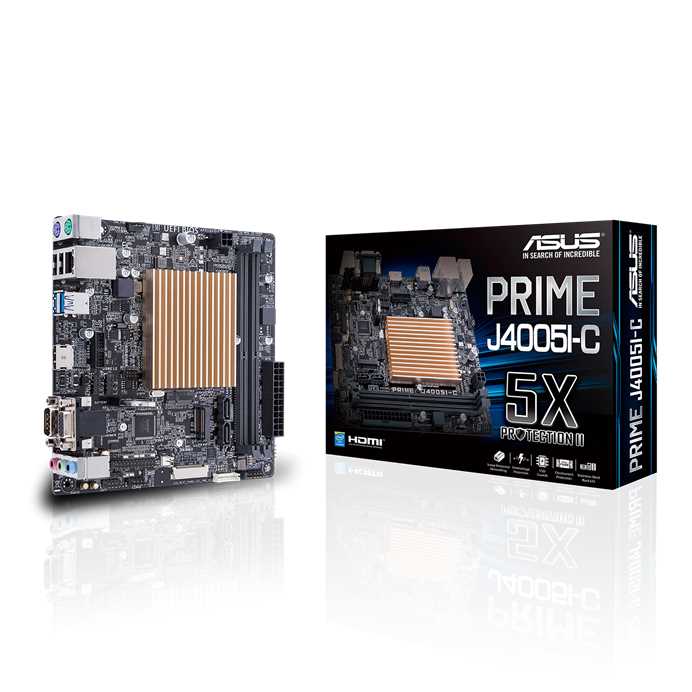

PRIME J4005I-C
CPU
Intelr Celeronr Dual-Core J4005 SoC onboard Processors
Memoria
2 x U-DIMM- Max. 8GB- DDR4 2400/2133 MHz Non-ECC- Un-buffered Memory *1
Dual Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graficos
Integrated Graphics Processor
Multi-VGA output support : HDMI/RGB/LVDS ports
- Supports HDMI with max. resolution 4096 x 2304 @ 24 Hz
- Supports LVDS with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 512 MB (for iGPU exclusively)
Supports up to 3 displays simultaneously
Almacenamiento
1 x M.2 Socket 3 with M Key- type 2260/2280 storage devices support (PCIE mode)
2 x SATA 6Gb/s port(s)-
LAN
Realtekr RTL8111H- 1 x Gigabit LAN Controller(s)
Audio
Realtekr ALC887-VD2 8-Channel High Definition Audio CODEC *2
- Supports : Jack-detection- Front Panel Jack-retasking
Puertos USB
Built-in Controller :
4 x USB 3.1 Gen 1 port(s) (2 at back panel 2 at mid-board)
Built-in Controller :
2 x USB 2.0 port(s) (2 at back panel- )
GL852G USB Hub :
4 x USB port(s) (4 at mid-board)
Caracteristicas Especiales
ASUS 5X Protection II :
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
- ASUS ESD Guards - Electrostatic discharge protection
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
ASUS EZ DIY :
- ASUS EZ Flash 3
- ASUS MyLogo 2
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-DIMM
Operating System Support
Windowsr 10 64-bit
Linux
Puertos I/O Traseros
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 -
2 x USB 2.0
1 x COM port(s)
3 x Audio jack(s)
Internal I/O
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 1 with E Key- type 2230 WiFi/BT devices support or PCIe/USB mode
1 x M.2 Socket 3 with M key- type 2260/2280 storage devices support (PCIe x 2 mode)
1 x LPT header
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s)
1 x Panel off header
1 x LVDS connector(s)
1 x System panel connector
1 x Flat panel display brightness connector
1 x Display panel VCC power selector
1 x Speaker connector
Accessorios
Useras manual
I/O Shield
2 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
BIOS
128 Mb Flash ROM- UEFI AMI BIOS- PnP- DMI2.0- WfM2.0- SM BIOS 3.0- ACPI 6.0- Multi-language BIOS- ASUS EZ Flash 3- My Favorites- Quick Note- Last Modified log- F12 PrintScreen- F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information- ErP ready
Capacidad de gestion
WfM 2.0- DMI 2.0- WOL by PME- PXE
Disco Soporte
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
Factor de forma
Thin Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
