Procesador
AMD Socket AM5- support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
(Please refer qCPU Support Listq for more information.)
Chipset
AMD B650
Memoria
Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types- data rate (speed)- and number of DRAM modules- please refer to qMemory Support Listq for more information.)
Graficos Integrados
Integrated Graphics Processor:
1 x DisplayPort- supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
1 x HDMI port- supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Audio
Realtekr Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio- access the audio software for audio settings.
LAN
Realtekr 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Realtekr Wi-Fi 6E RTL8852CE
WIFI a- b- g- n- ac- ax- supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Puertos de Expansion
1 x PCI Express x16 slot- integrated in the CPU:
AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Interfaz de Almacenamiento
1 x M.2 connector- integrated in the CPU- supporting Socket 3- M key- type 2280 SSDs:
AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2 x SATA 6Gb/s connectors
RAID 0 and RAID 1 support for NVMe SSD storage devices
RAID 0 and RAID 1 support for SATA storage devices
USB
CPU:
1 x USB Type-Cr port on the back panel- with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
1 x USB 2.0/1.1 port on the back panel
Chipset:
1 x USB Type-Cr port with USB 3.2 Gen 1 support- available through the internal USB header
3 x USB 3.2 Gen 1 ports (1 port on the back panel- 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports (2 ports on the back panel- 2 ports available through the internal USB header)
Conectores Internos de E/S
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB Type-Cr header- with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Clear CMOS jumper
1 x chassis intrusion header

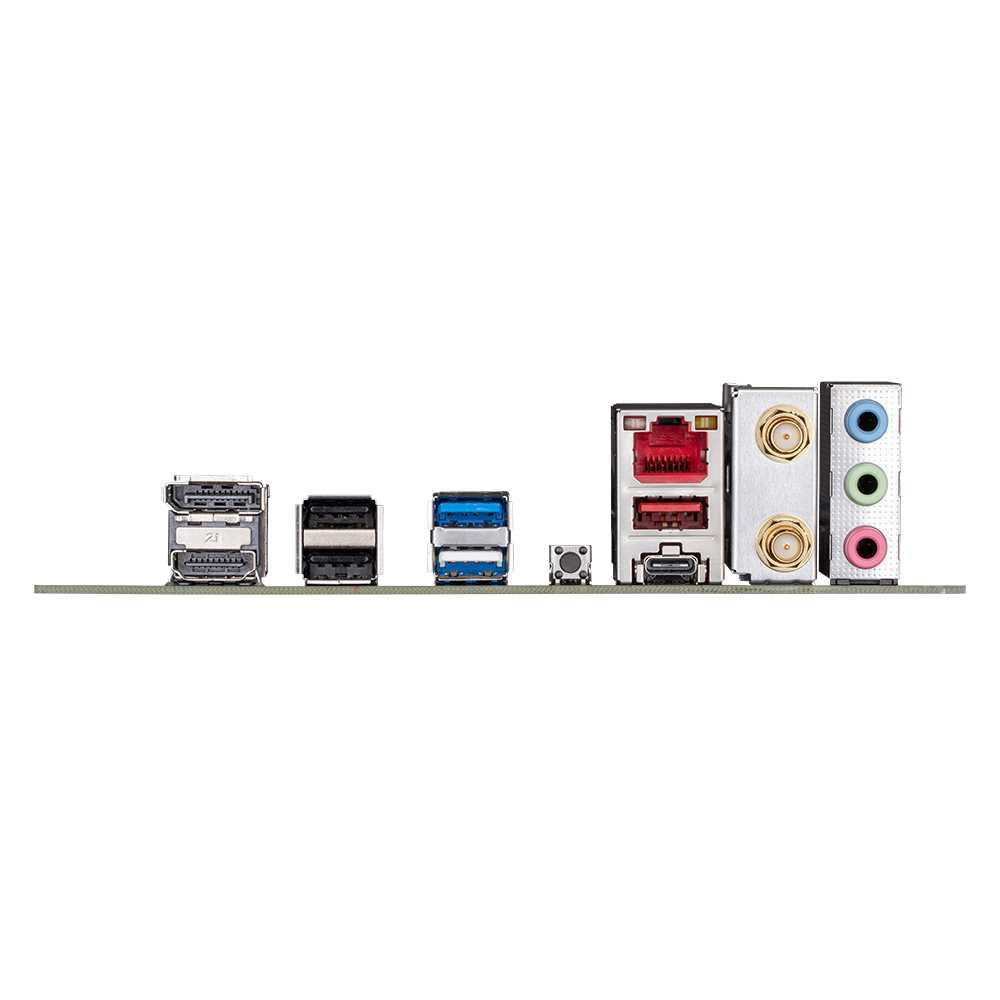

Conectores del Panel Trasero
1 x DisplayPort
1 x HDMI port
1 x USB Type-Cr port- with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB 3.2 Gen 1 port
3 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks
Controlador de E/S
iTEr I/O Controller Chip
Monitorizacion H/W
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a- DMI 2.7- WfM 2.0- SM BIOS 2.7- ACPI 5.0
Caracteristicas Unicas
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Software Incluido
Nortonr Internet Security (OEM version)
LAN bandwidth management software
Sistema Operativo
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Diseno
Mini-ITX Form Factor; 17.0cm x 17.0cm
