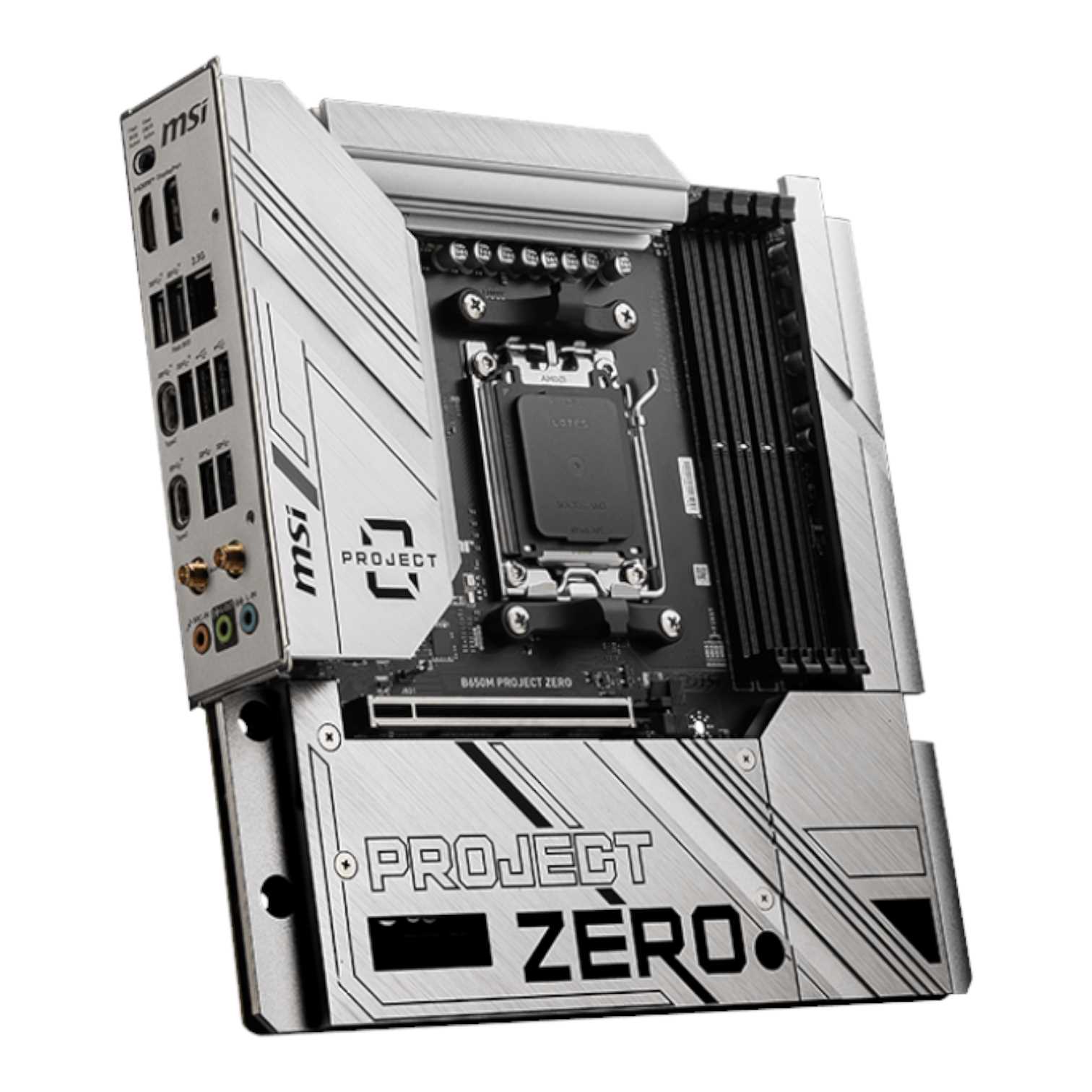

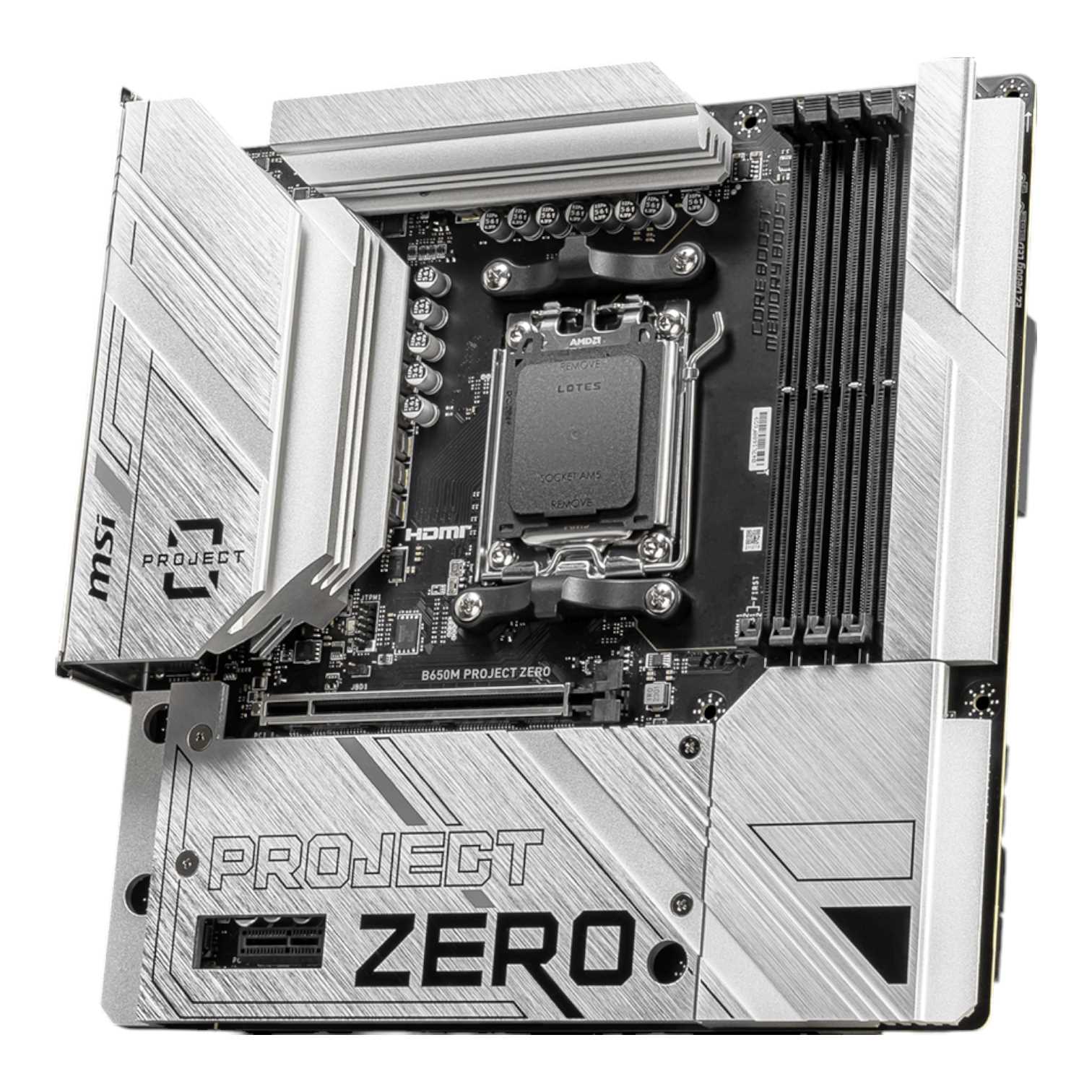

Mother MSI B650M PZ DDR5 AM5 c/back connectors (Serie 7000/8000)
Codigo: 0416017
Marca: MSI
Codigo parte: B650M PROJECT ZERO
Q Flash - Bios Button: Si. Renombrar archivo de actualizacion por MSI.ROM

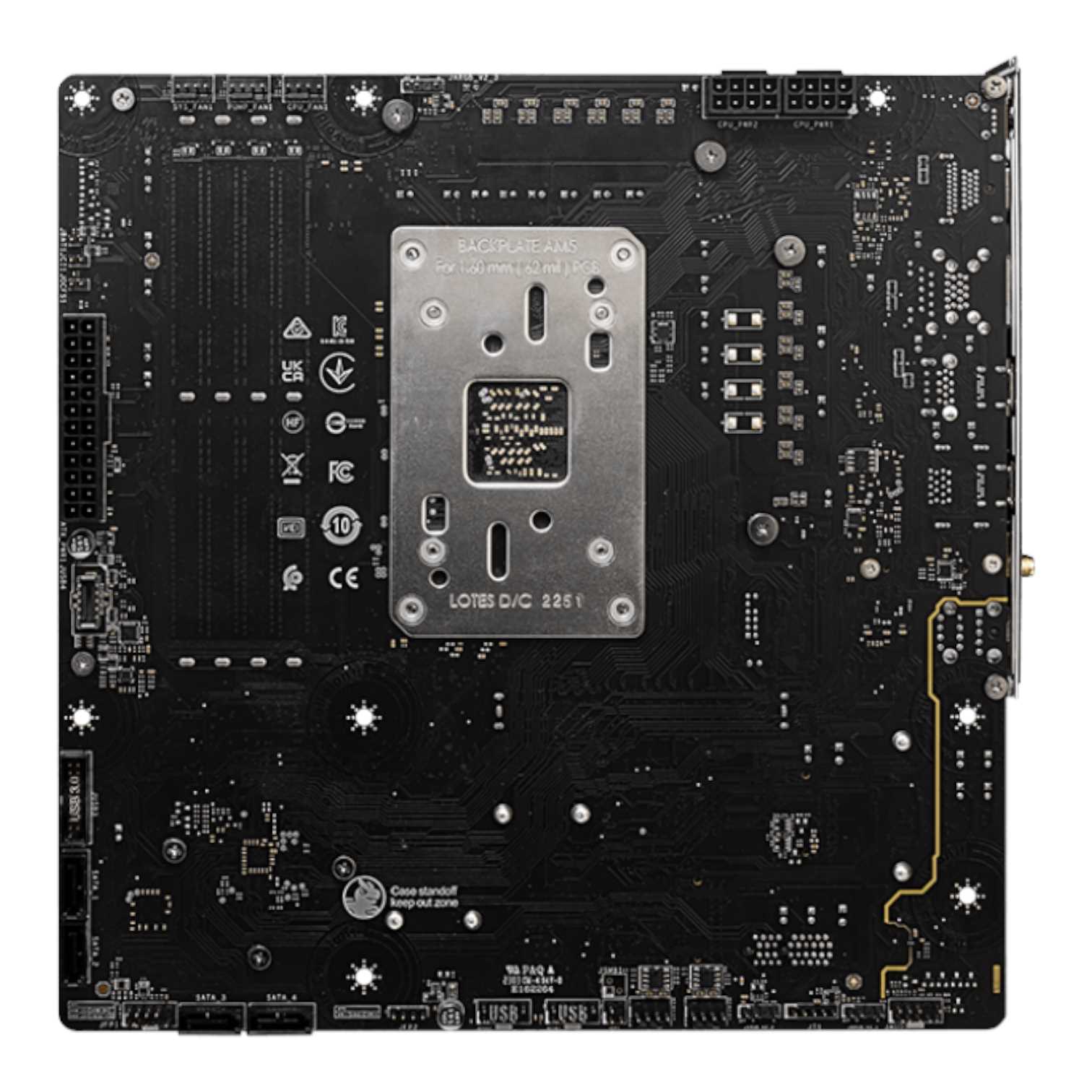

B650M PROJECT ZERO posee los conectores de alimentacion- los conectores de los ventiladores y otros conectores a la parte posterior de la placa base para proporcionar una vista frontal mas limpia y ordenada- permitiendo que la placa base- el enfriador de liquidos y el diseno estetico de la tarjeta grafica se muestren en su totalidad.
CHIPSET AMD B650
CPU Supports AMD Ryzen 8000/ 7000 Series Desktop Processors
Socket AM5
MEMORY 4x DDR5- Maximum Memory Capacity 256GB
Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
b 1DPC 1R Max speed up to 7600+ MHz
b 1DPC 2R Max speed up to 6400+ MHz
b 2DPC 1R Max speed up to 6400+ MHz
b 2DPC 2R Max speed up to 5400+ MHz

AUDIO Realtekr ALC897 Codec
7.1-Channel High Definition Audio
Supports up to 32-Bit/384 kHz playback on front panel
STORAGE 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 - supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 - supports 2280/2260 devices
4x SATA 6G
b M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed
LAN Realtekr RTL8125BG 2.5Gbps LAN
ONBOARD GRAPHICS 1x HDMI
Support HDMITM 2.1 with HDR- maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4- maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT 1x PCI-E x16 slot
b Supports x16 (For Ryzen 7000 Series processors)
b Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors)
b Supports x4 (For Ryzen 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
RAID Supports RAID 0- RAID 1- and RAID 10 for SATA storage devices*
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
* SATA_A1_A2 do not support RAID function.
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
WIRELESS LAN | BLUETOOTH AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz- 40MHz- 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

INTERNAL IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
