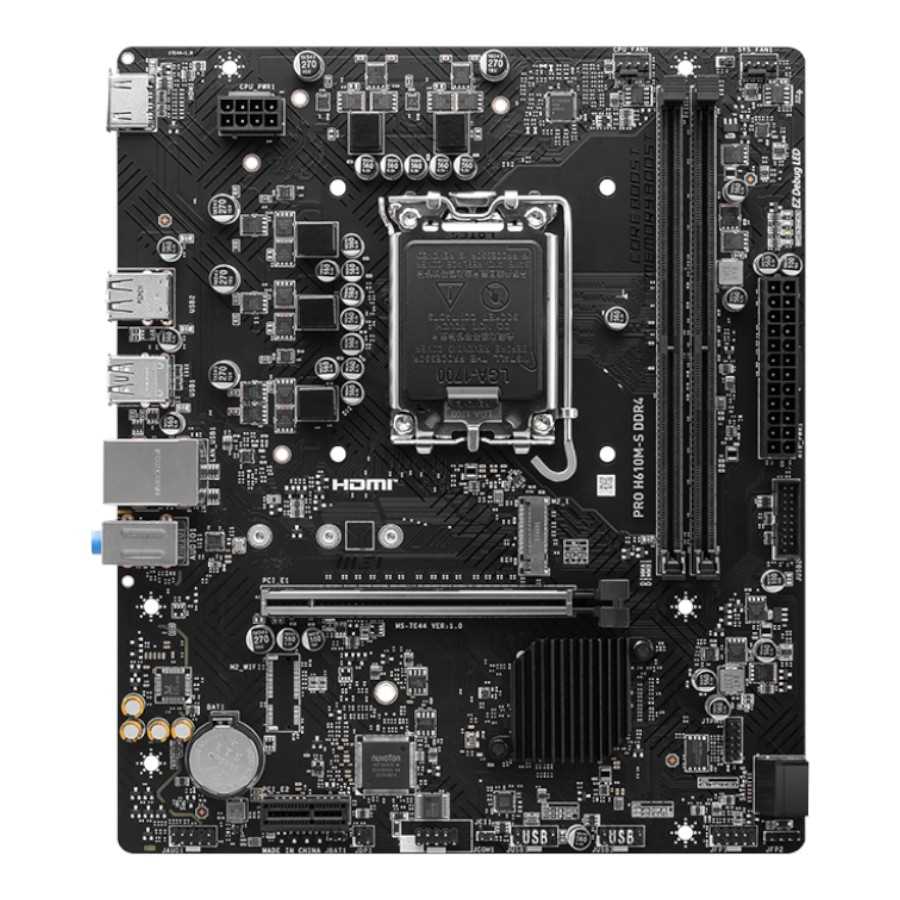

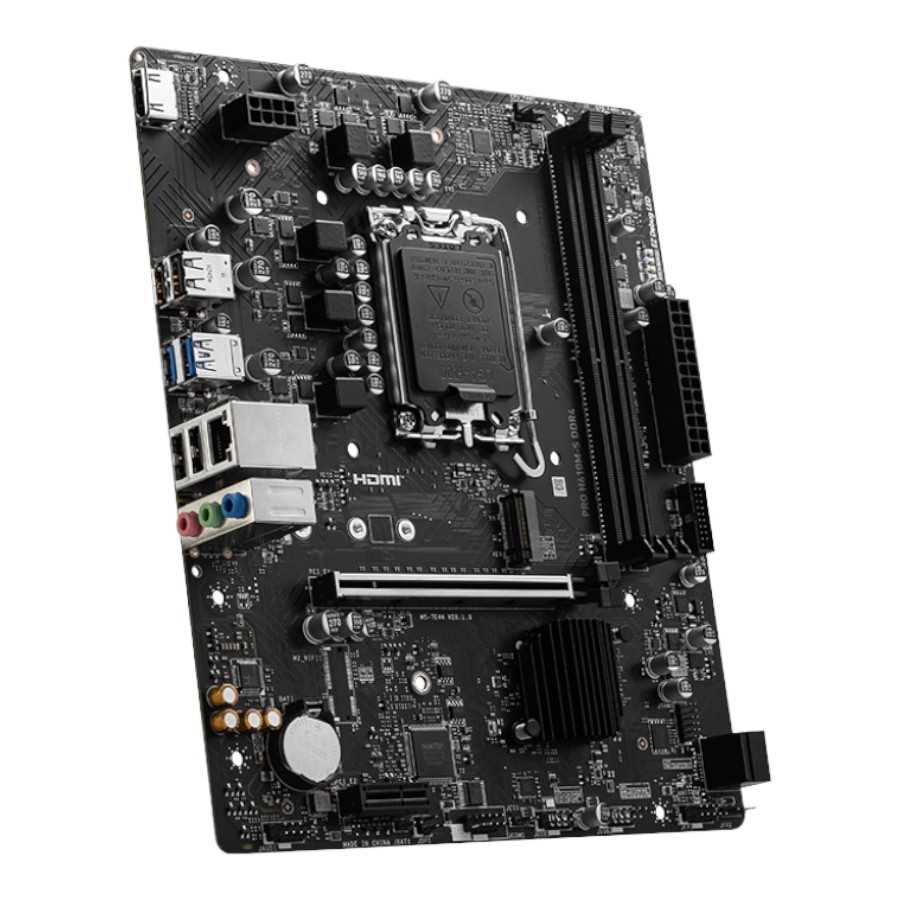

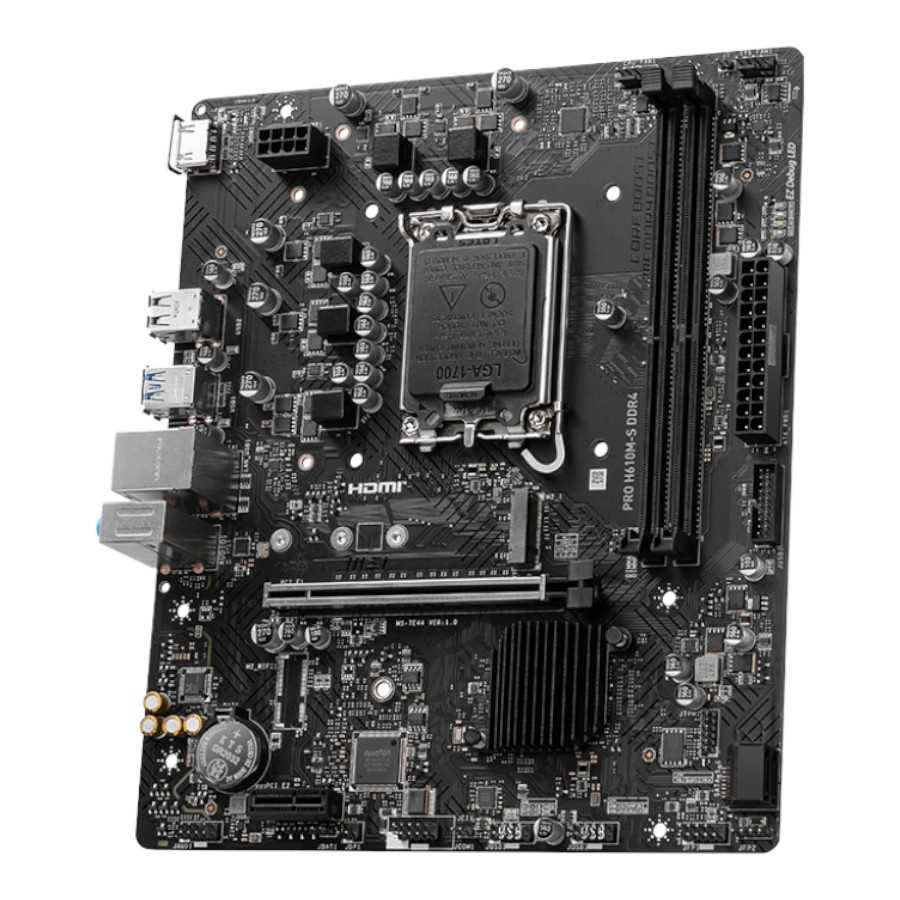

Chipset INTEL H610
CPU Support Intelr Core 14th/ 13th/ 12th Gen Processors- Intelr Pentiumr Gold and Celeronr Processors
LGA 1700
Memory 2x DDR4- Maximum Memory Capacity 64GB
Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports Dual-Channel mode
Supports non-ECC- un-buffered memory
Onboard Graphics 1x HDMI
Support HDMI 1.4 with HDR- maximum resolution of 4K 30Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio Realtekr ALC897 Codec
7.1-Channel High Definition Audio
Storage 1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 - supports 2280/2260/2242 devices
2x SATA 6G
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
LAN Realtekr RTL8111H Gigabit LAN
Internal IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
LED FEATURE 4x EZ Debug LED

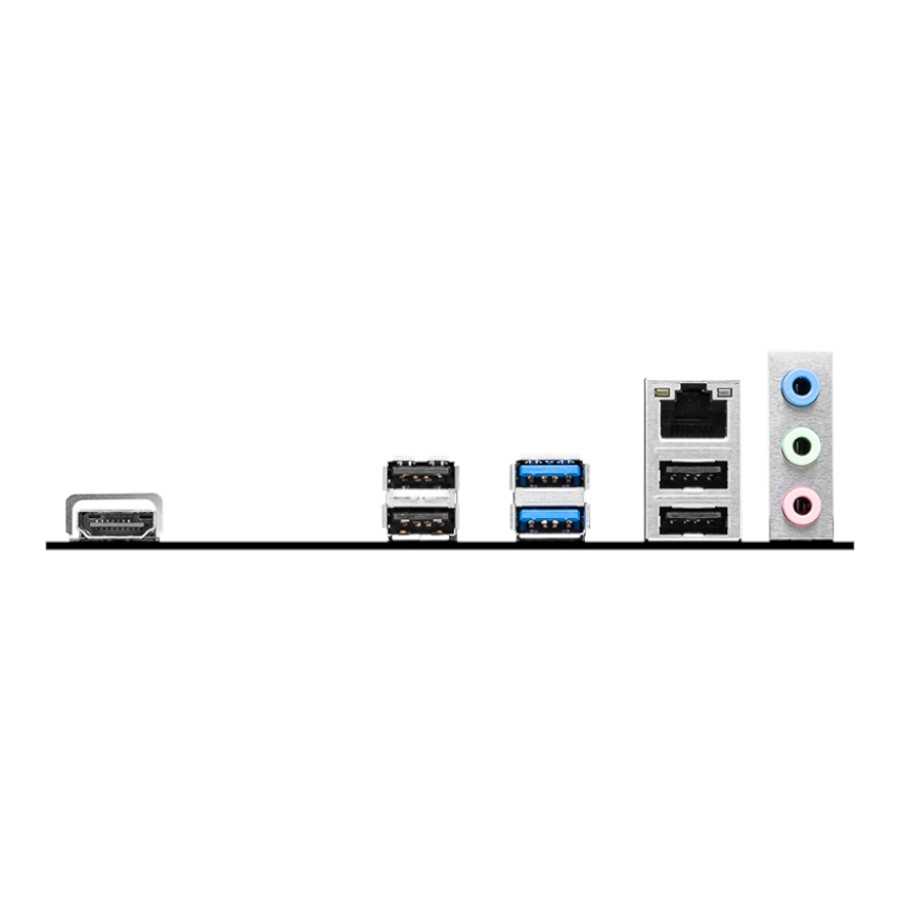

BACK PANEL PORTS
HDMI
USB 3.2 Gen 1 5Gbps (Type-A)
USB 2.0
LAN port
Audio Connectors
USB 2.0
OPERATING SYSTEM Support for Windowsr 11 64-bit- Windowsr 10 64-bit
