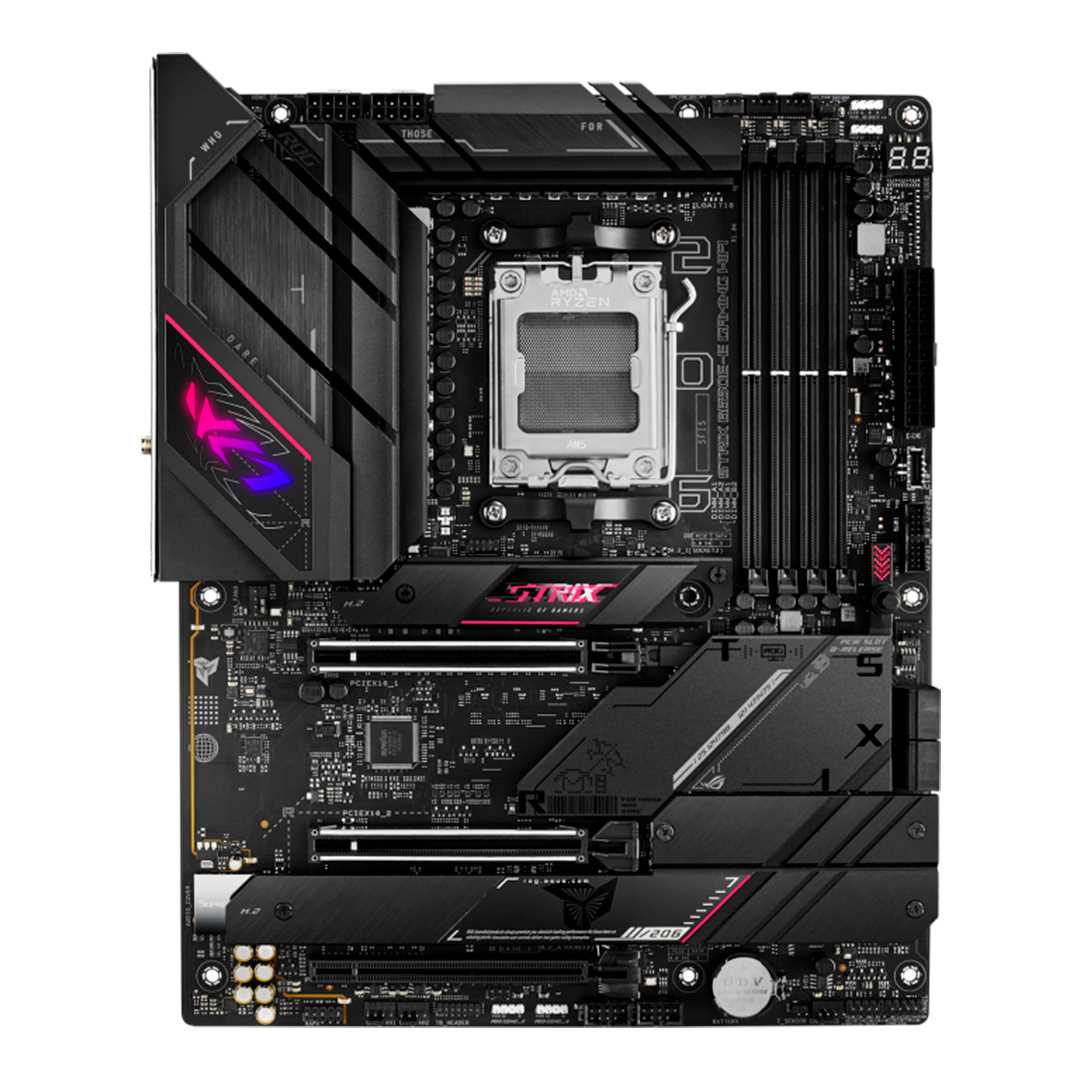

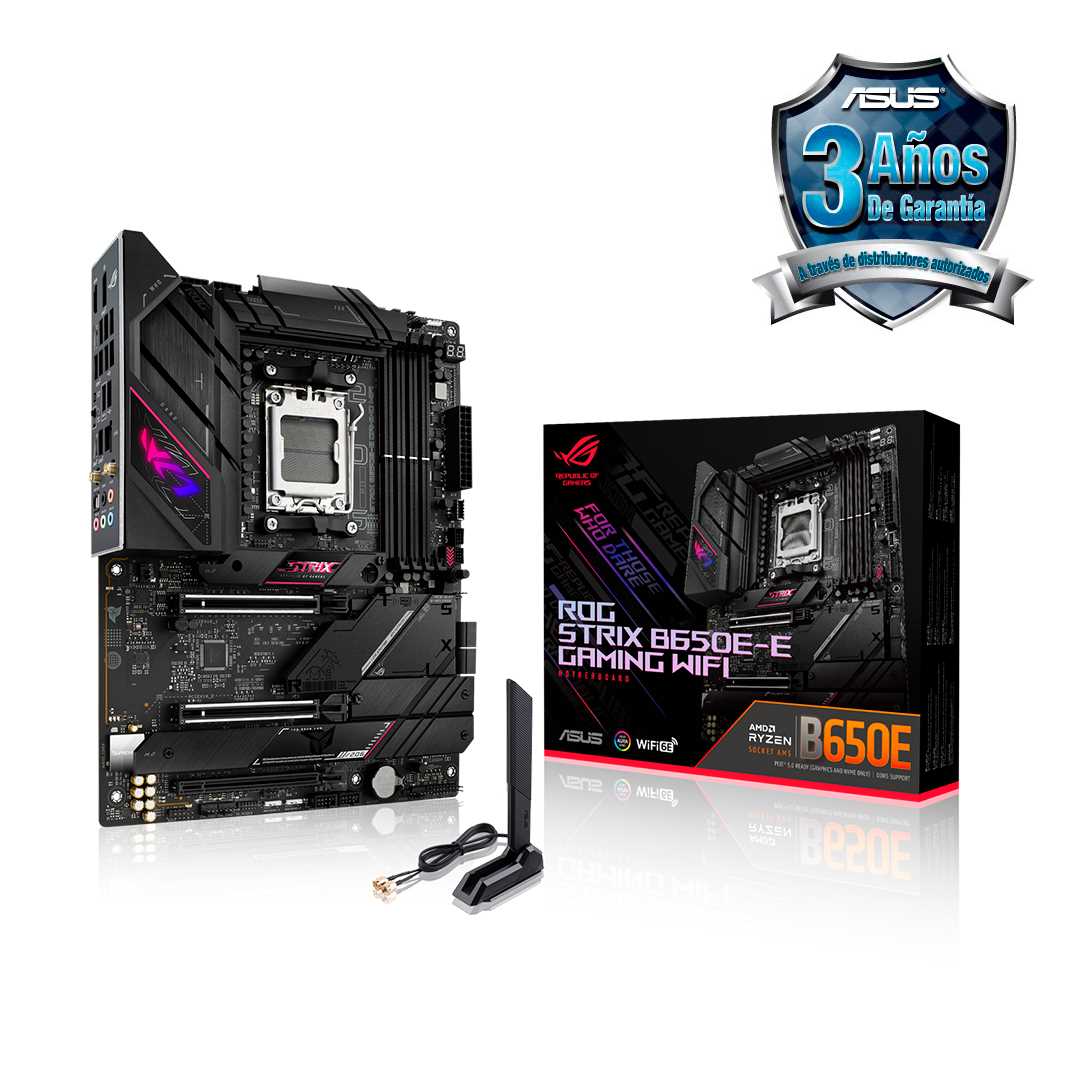

ROG STRIX B650E-E GAMING WIFI
Placa base ASUS ROG Strix B650E-E Gaming WiFi AMD Ryzen AM5 ATX- 16 + 2 etapas de potencia- DDR5- cuatro ranuras M.2- PCIer 5.0- WiFi 6E- LAN de 2-5 Gb- puerto de E/S trasero USB 3.2 Gen 2x2 tipo Cr y Aura Sync RGB
Zocalo AMD AM5: preparado para los procesadores de sobremesa AMD Ryzen serie 7000.
Solucion de alimentacion solida: 16 + 2 etapas de potencia agrupadas con conectores de alimentacion ProCool duales- bobinas de aleacion de gran calidad y condensadores duraderos para soportar procesadores multinucleo.
Diseno termico optimizado: enormes disipadores termicos con canales de flujo de aire cortados estrategicamente y unidos a las etapas de alimentacion con almohadillas termicas de alta conductividad.
Compatibilidad con M.2 de nueva generacion: dos ranuras PCIer 5.0 M.2 y dos ranuras PCIe 4.0 M.2 cubiertas con disipadores termicos para conseguir el maximo rendimiento.
Completa conectividad: puerto y conector en el panel frontal USB 3.2 Gen 2x2 tipo Cr- once puertos USB adicionales- dos PCIe 5.0 x16 SafeSlot- HDMIr 2.1 y DisplayPort 1.4.
Red de alto rendimiento: WiFi 6E (802.11ax) integrado en placa- Bluetoothr 5.2 y Ethernet Intelr de 2-5 Gb con ASUS LANGuard.
Control inteligente: AI Networking y Cancelacion de ruido bidireccional con IA- tecnologias exclusivas de ASUS- para simplificar la configuracion y mejorar el rendimiento.
Audio gaming inmersivo: ALC4080 con amplificador Savitech SV3H712- junto con DTSr Sound Unbound y Sonic Studio III.
Personalizacion inigualable: iluminacion RGB Aura Sync exclusiva de ASUS- incluido un cabezal RGB y tres cabezales Gen 2 direccionables.
Diseno practico para personalizacion: ranura PCIe Q-Release- M.2 Q-Latch- escudo de E/S premontado- boton BIOS FlashBack y boton Clear CMOS.
Software intuitivo: panel de control UEFI BIOS facil de usar- Armoury Crate para gestionar todos los dispositivos ASUS desde el mismo sitio y suscripcion de prueba a AIDA64 Extreme durante 60 dias incluidaCPU
AMD Socket AM5 for AMD Ryzen Desktop Processors*
* Refer to www.asus.com for CPU support list.
Chipset
AMD B650
Memory
4 x DIMM- Max. 192GB- DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/
6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNon-ECC- Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO)
OptiMem II
* Supported memory types- data rate(Speed)- and number of DRAM module vary depending on the CPU and memory configuration- for more information refer to www.asus.com for memory support list.
* Non-ECC- Un-buffered DDR5 Memory supports
On-Die ECC function
Graphics
1 x DisplayPort*
1 x HDMIr port**
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
**Supports max. 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
AMD Ryzen Desktop Processors*
2 x PCIe 5.0 x16 slots (supports x16 | x8/x4 modes)
AMD B650 Chipset**
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
Storage
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen Desktop Processors
M.2_1 slot (Key M)- type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M)- type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M)- type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
AMD B650 Chipset
M.2_4 slot (Key M)- type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10.
**RAID configuration is not supported on the SATA6G_E1-4 ports.
Ethernet
1 x Intelr 2.5Gb Ethernet
ASUS LANGuard
Wireless | Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/glbrg/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between countries.
USB
Rear USB (Total 12 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-Cr)
7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-Cr)
4 x USB 2.0 ports
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-Cr)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection- Multi-streaming- Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playbackq
Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x Type-Cr)
7 x USB 3.2 Gen 2 ports (6 x Type-A- 1 xUSB Type-Cr)
4 x USB 2.0 ports
1 x DisplayPort
1 x HDMIr port
1 x Wi-Fi Module
1 x Intelr 2.5Gb Ethernet port
5 x Audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
*The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports USB
1 x USB 3.2 Gen 2 connector (supports USB Type-Cr)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with
Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt (USB4r) header
Special Features
Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red]- DRAM [yellow]- VGA
[white]- Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- M.2 heatsink backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Software Features
ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
- Sonic Radar III
- DTSr Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
TPU
DIGI+ VRM
Turbo app
PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Dynamic OC Switcher
FlexKey
BIOS
256 Mb Flash ROM- UEFI AMI BIOS
Manageability
WOL by PME- PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x Rubber Packages for M.2
Documentation
1 x User guide
Operating System
Windowsr 10 64-bit- Windowsr 11 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
